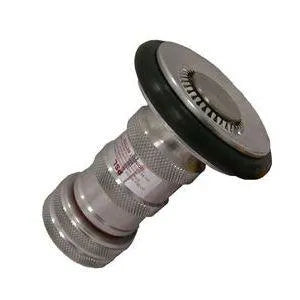

Firemaster Fyrex Jet/Spray Nozzles

PSL’s own manufactured range of Fyrex Nozzles are excellent general purpose/fire fighting nozzles complete with excellent fog spray/jet/shut-off action, variable by rotation of the nozzle tip.

A friction loss 280 kPa was measured at a test flow of 4000 L/min.

FEATURES

  • Fine machining produces excellent fog
  • Heavy knurling ensures a good secure grip
  • Wide bump ring for added tip protection
  • Diffuser is made from stainless steel for lifetime durability. Secured with a self-locking nut
  • Fine finish internals for maximum flow
  • Wide, heavy section, non-jam thread for quick action and reliability

MATERIALS & FINISHES

  • Precision machined in either gunmetal or heat-treated aluminium alloy
  • Polished alloy or gunmetal
  • Chromed gunmetal
  • Anodised light-alloy



 MODEL  INLET  Flow @ 700 KpA on Jet  Throw  Flow @ 700 kPa on Spray  Weight (LA)  Weight(GM)
25 38mm/45mm  291 lpm  24 metres  750 lpm  750 gm  2.25 kg
35 64mm  1532 lpm  36 metres  2741 lpm  4 kg  10 kg
