Firemaster Fire Fighting Tank Adaptor Kit

Where reticulated water supplies are unavailable or inadequate, alternative fire fighting water sources may be used to provide fire fighting water supply. These tank adaptor kits fit the requirement as per the New Zealand Fire Service Fire Fighting supplies Code of Practice SNZ PAS 4509:2003.

Butterfly Valve (SKU:60021)

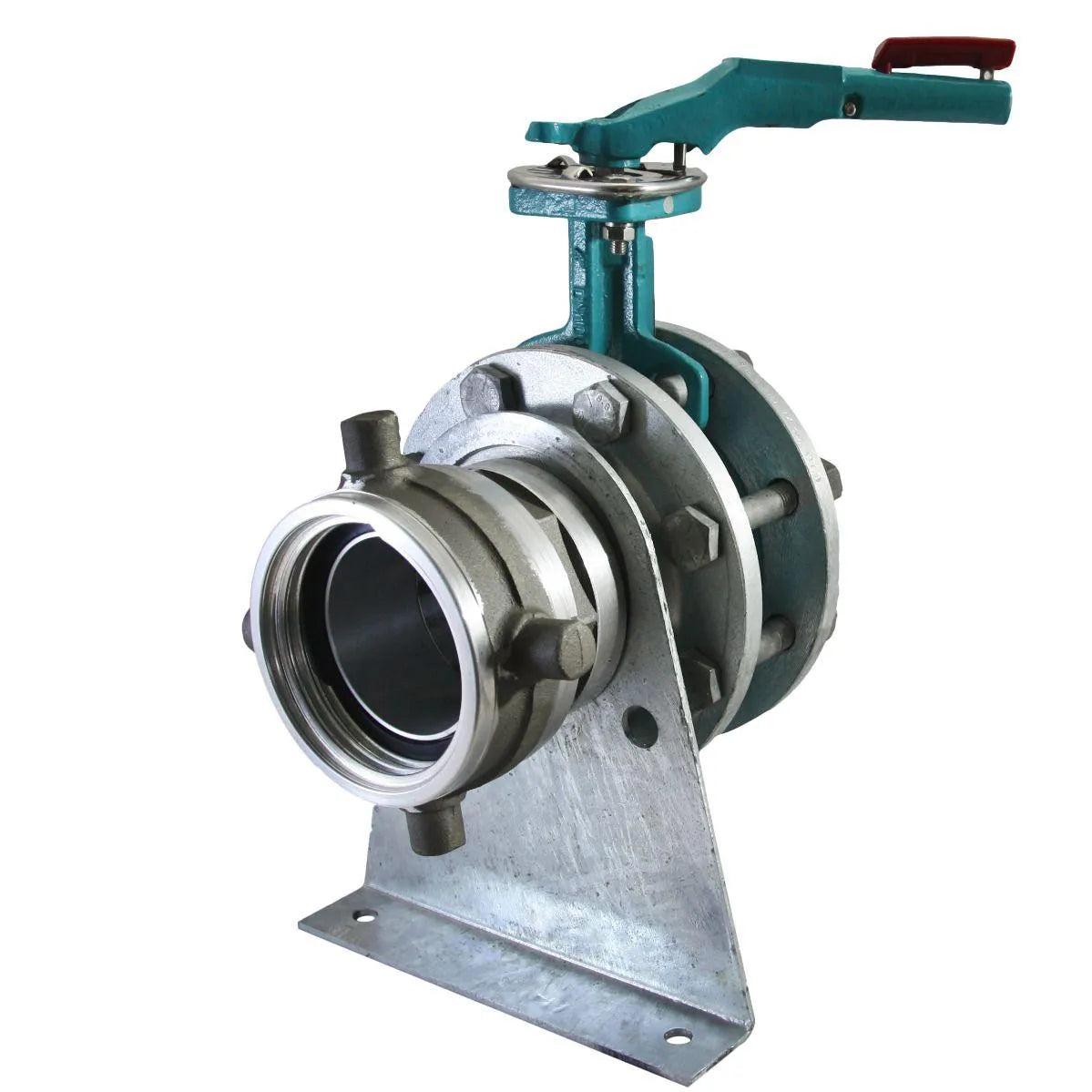

100mm FRT x 100mm FBSP adaptor with swivel head complete with Butterfly Valve and supporting bracket.

Specifications

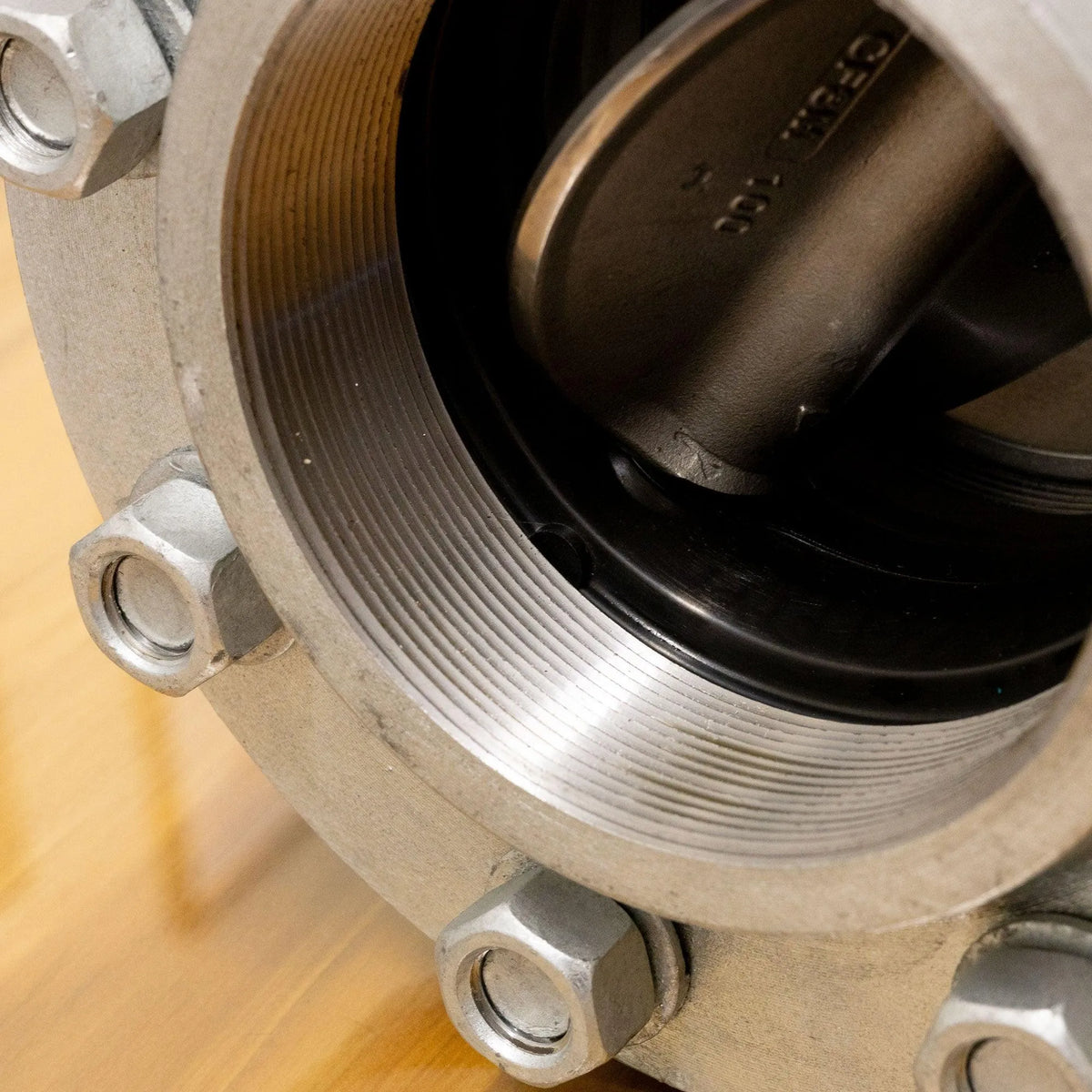

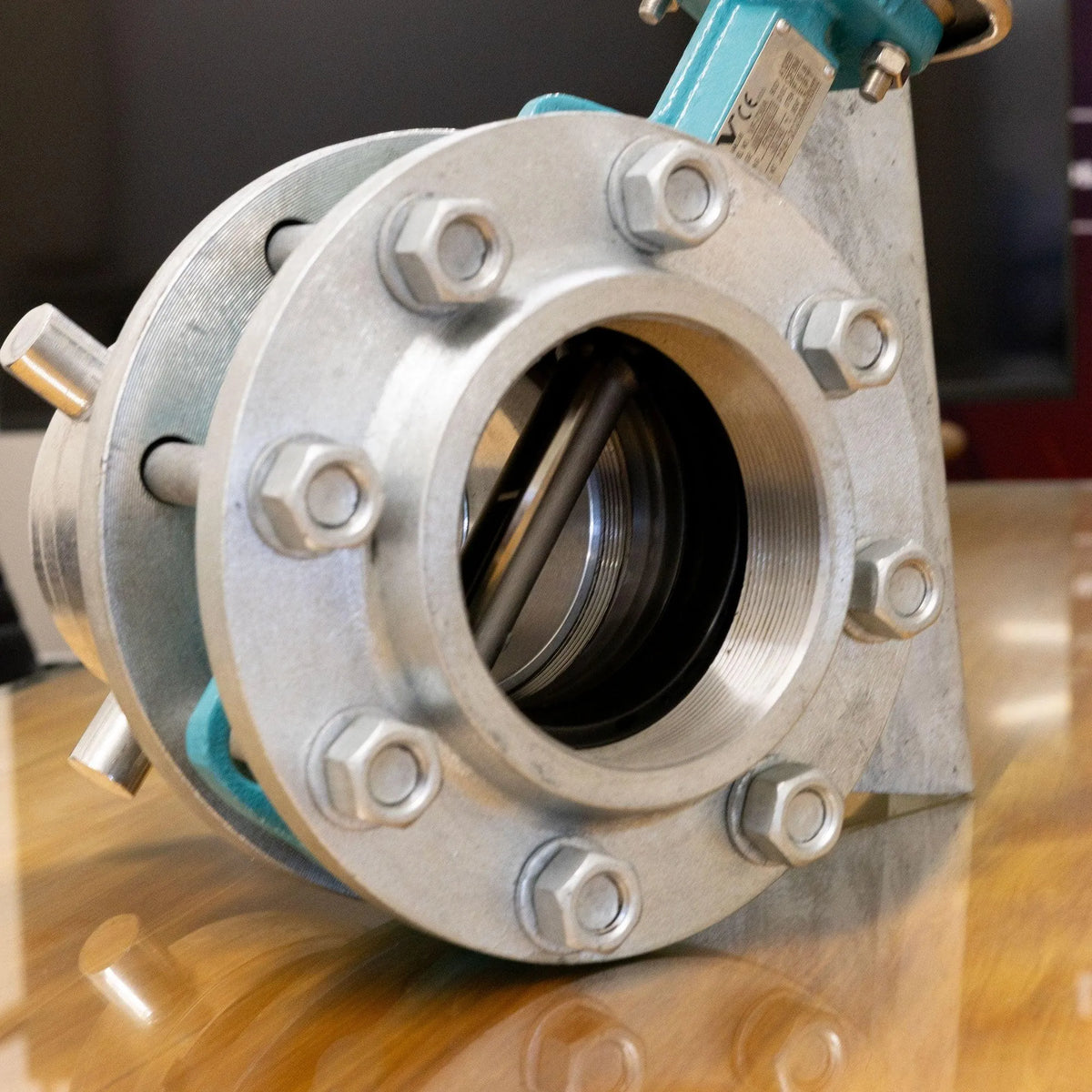

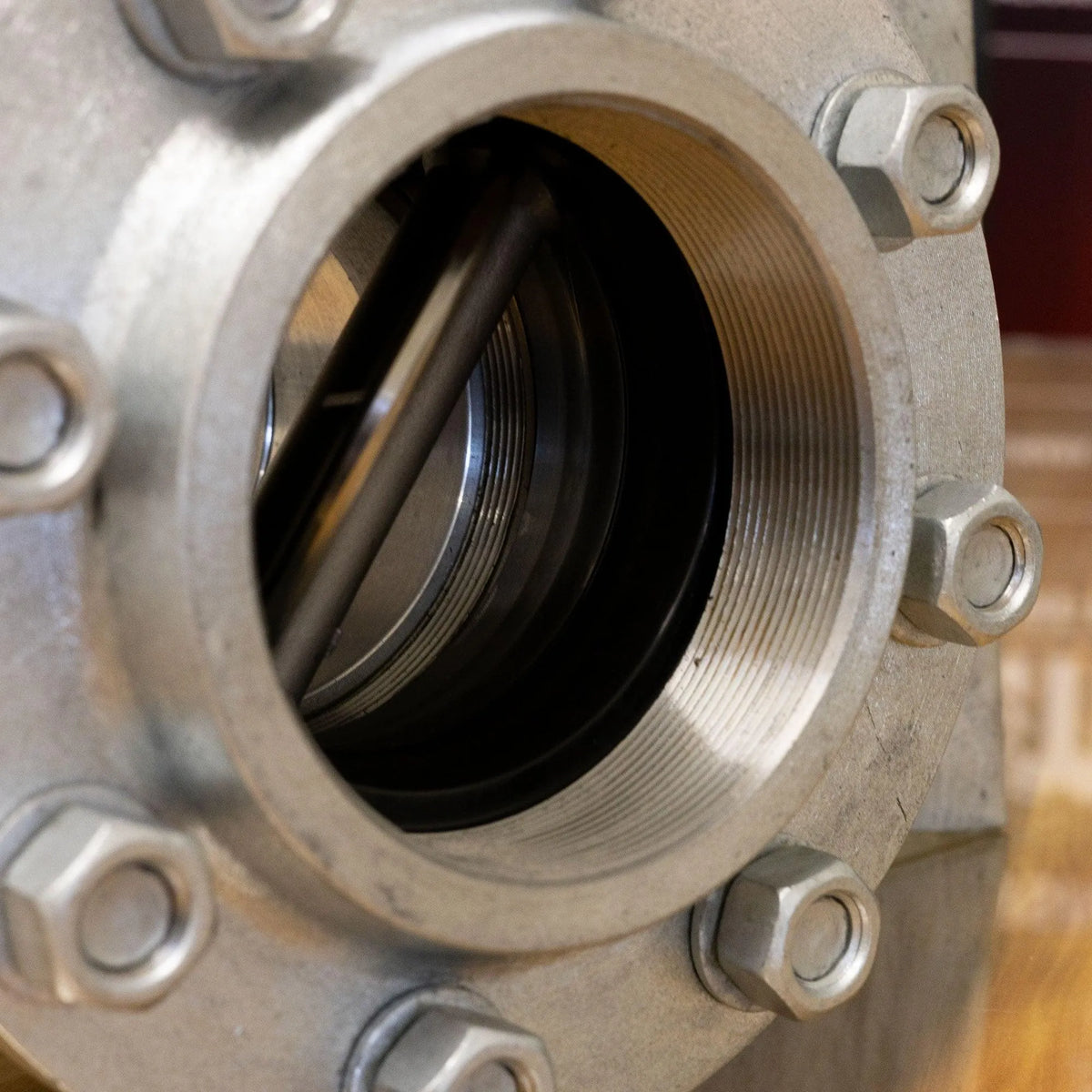

Round Thread Adaptor: 100mm FRT x 100mm FBSP Swivel Thread (SKU:059000)

Support Bracket: 4mm hot dip galvanised steel multi fit to go over a 100mm round thread adaptor or bolt to a 100mm table flange. Can be rotated to be mounted in any position to the ground, to a post or overhead rail.

Approvals: SNZ PAS 4509:2003

N.B: Fitting comes standard with 100mm FBSP but can be supplied with 100mm MBSP or 100mm table D or E flange

Download Specification PDF
