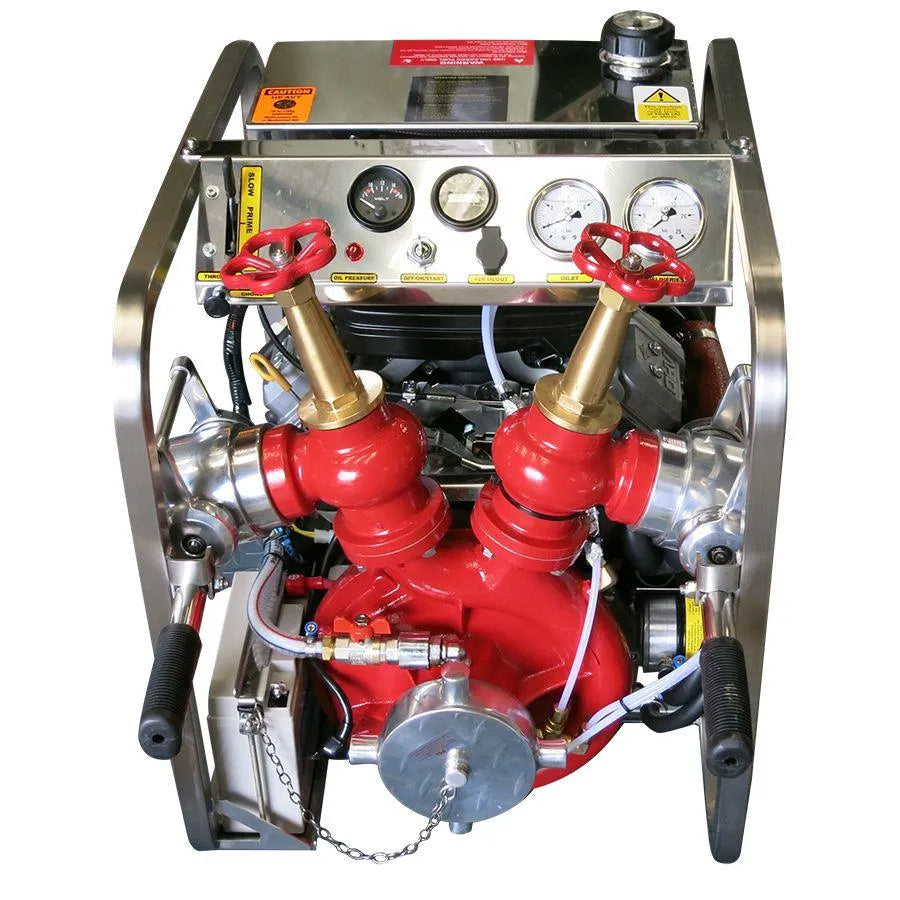

Firemaster 23 Portable Pump

FEATURES

  • Rotary Vane Primer
  • Controls are easy to operate from one location
  • Engine on/off/start rotary switch
  • Push button electric start with manual recoil back up
  • 12V inlet/outlet socket
  • Pressure indication, throttle control and choke control
  • Pump pressure gauge and pump compound gauge
  • Non return valve outlets
  • Stainless Steel Frame

Typical performance @ 3 metres suction lift:

 Pressure  Output
100 kPa 1600 Litres/min
195 kPa 1500 Litres/min
400 kPa 1175 Litres/min
525 kPa 933 Litres/min
600 kPa 800 Litres/min
700 kPa 750 Litres/min
825 kPa 500 Litres/min
900 kPa 428 Litres/min



SPECIFICATIONS

Pump:
Type: Combination: Pressure/Volume
Intake: 4” (100mm) BSRT
Discharge: 70mm FI Double Lug
Volute Body And Head: Marine Grade Aluminium Alloy CC601 Heat-Treated
Impeller: Marine Grade Aluminium Alloy CC601 fully enclosed
Wear Rings: Long wearing PTFE, economical to replace
Shaft Seal: Spring-loaded mechanical
Priming: Dry sliding vane type with electric clutch. Fast and easy to use. Primes 3m in 10 secs, 7m in 30 secs.

Engine:
Engine Model No: Briggs and Stratton 386447
Type: Vanguard V-Twin air cooled overhead valve with Oil Cooler Heat Exchanger
Maximum output: 23HP (17.2kW) @ 3600 RPM 38.26 cu.
Displacement: 627CC, 4 cycle full pressure lubrication
Fuel Tank: Integral 10L
Battery: 12V VRLA Battery
Dry Weight: 87kg (incl battery)
Dimensions: 623mmL x 500mmW x 630mmH

Optional Extras: Round the Pump Proportioner, Wheel Kit
