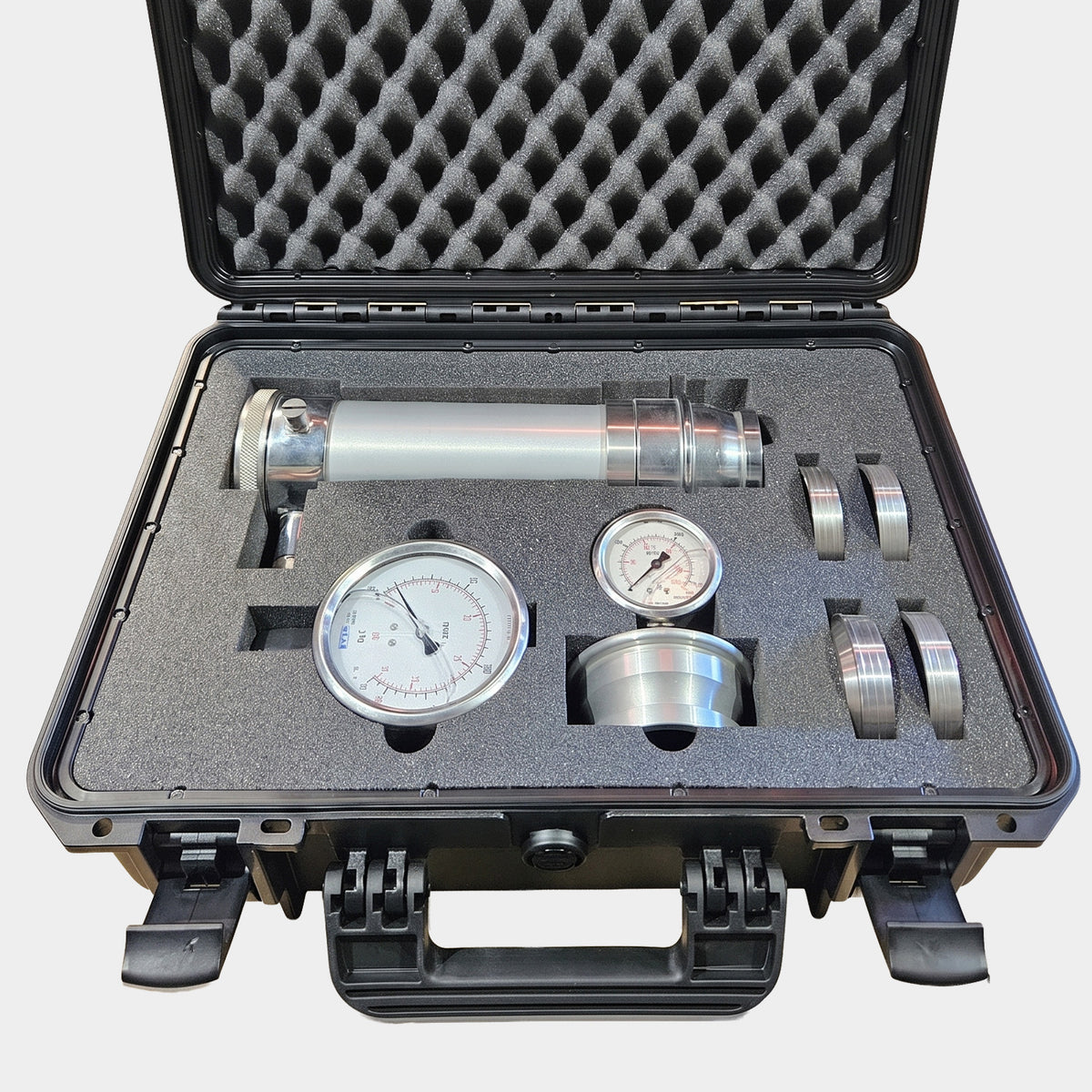

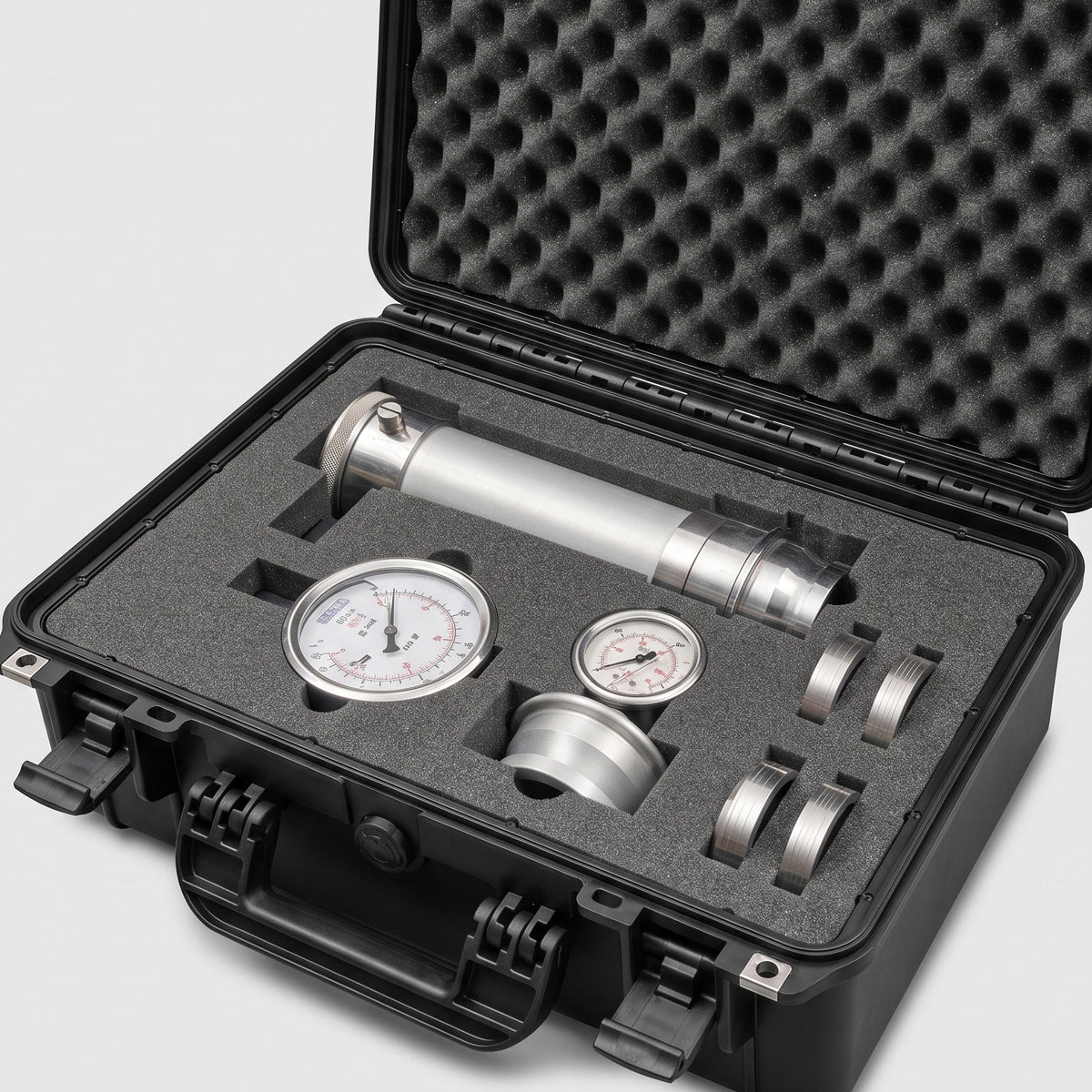

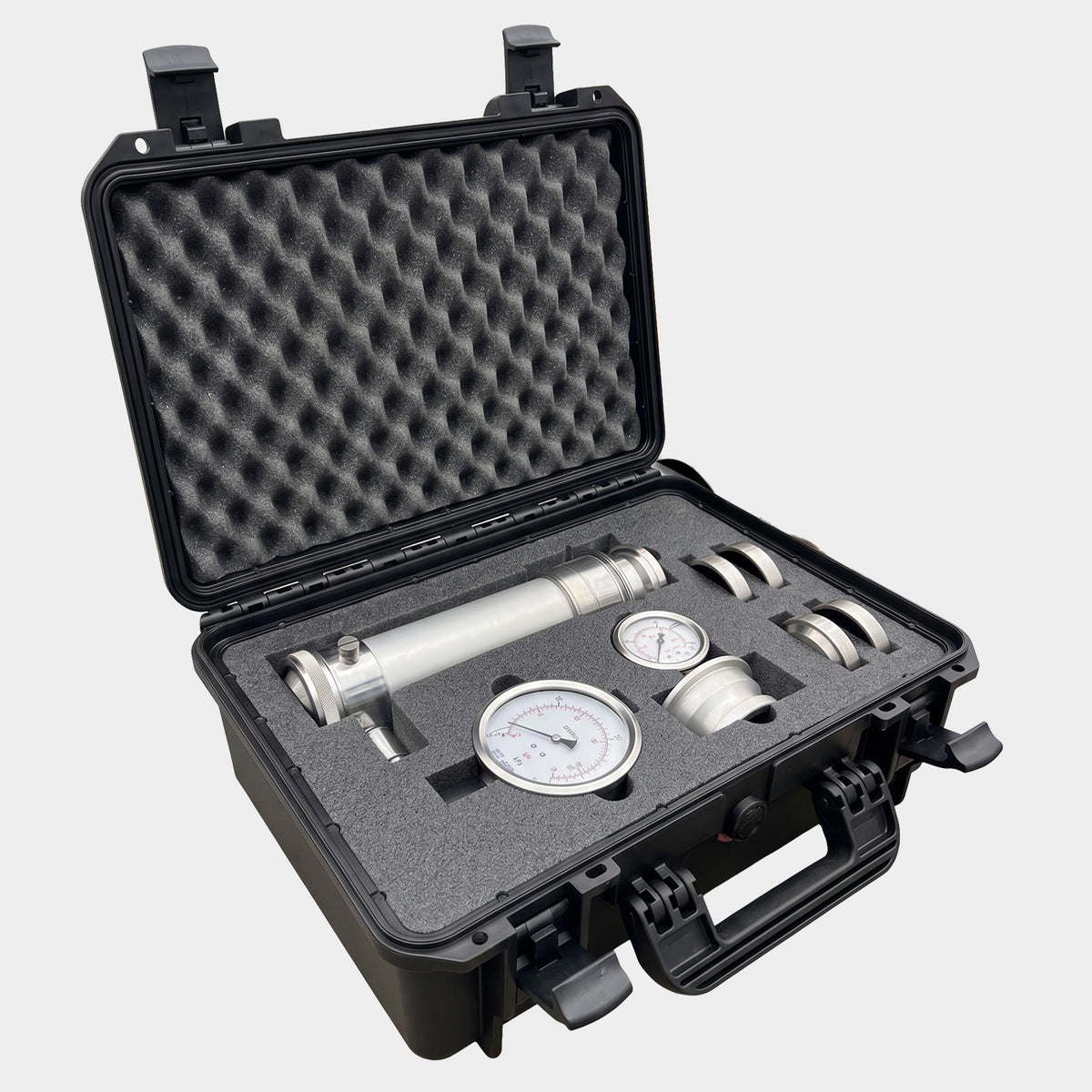

Compact, Field-Ready Hydrant Testing System
A compact ready-to-use hydrant flow/static pressure metering system designed to fit directly on to a hydrant standpipe from which the flow discharges horizontally.
Packed in a watertight and airtight Max430 Professional Protective Case with custom foam inner for safe transportation and storage.
Features
300mm Flow Tube
300mm flow tube fitted with instantaneous coupling inlet and outlet socket for holding interchangeable orifices.
Bourdon Tube Pressure Gauge
Bourdon tube pressure gauge, copper alloy stainless steel case, glycerine filled.
Maximum Sensitivity
Reads low back pressures for maximum sensitivity.
Four Interchangeable Orifices
Four Interchangeable orifices supplied to suit different flow rates.
70mm Static Pressure Gauge
70mm Static Pressure Gauge, 0-1600 kPa reading mounted on an alloy blank cap with pressure relief valve.

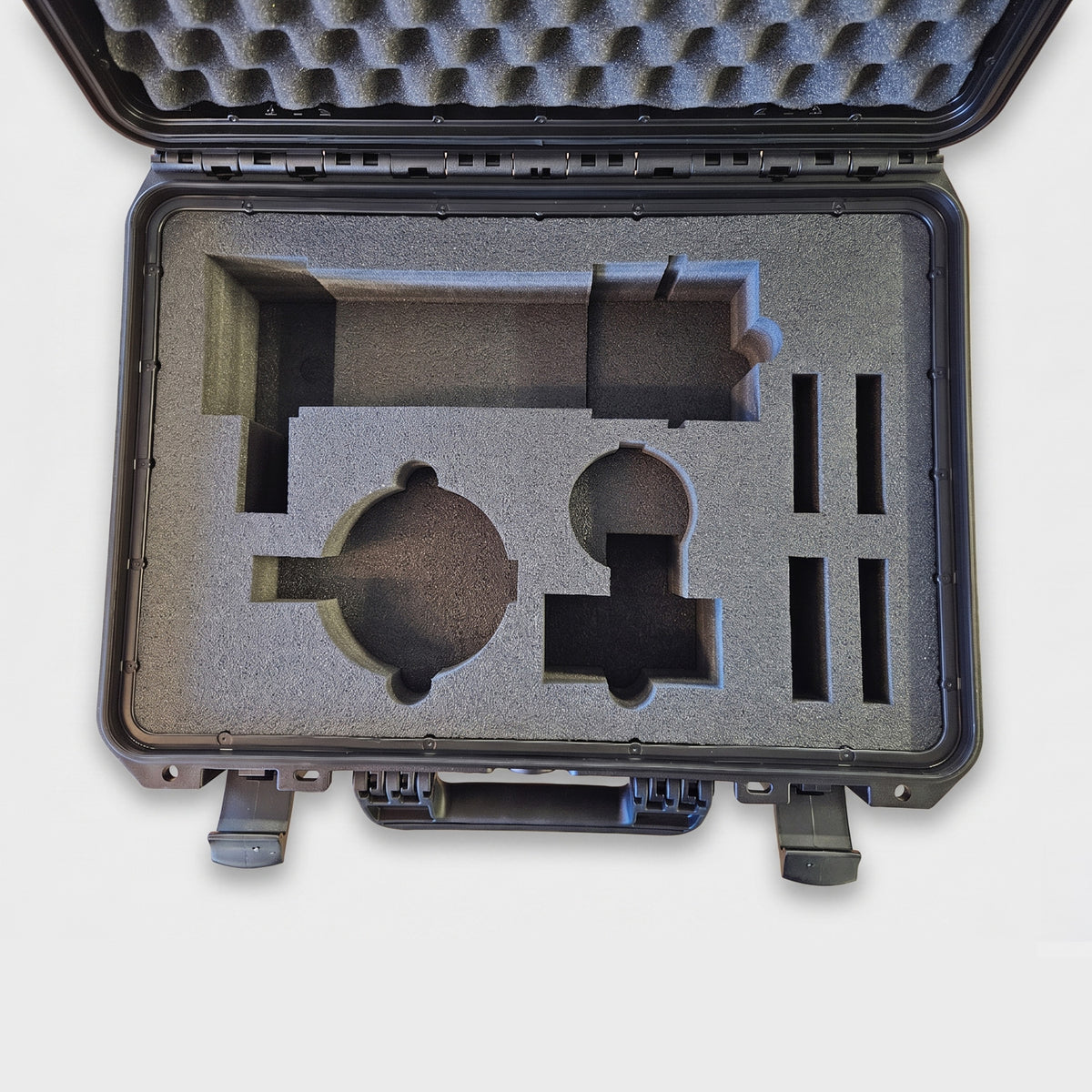

Max430 Protective Case
Watertight and airtight Max430 Professional Protective Case developed specifically for the demanding conditions that Max Cases will be exposed to.
Specification
3.3 to 54 L/sec | 200 to 3240 L/min
Measures 3.3 to 54 litres per second, 200 to 3240 litres per minute. As a result of exhaustive testing and standardised manufacturing dimensions, the flow tables provided are considered accurate to +/- 0.5%, subject to accurate reading of the gauge.
- Gauge Only 5.6 kg
- Gauge & Case Complete 8.8 kg
- 70mm Instantaneous SNZ PAS 4505
- 64mm Instantaneous BS336
